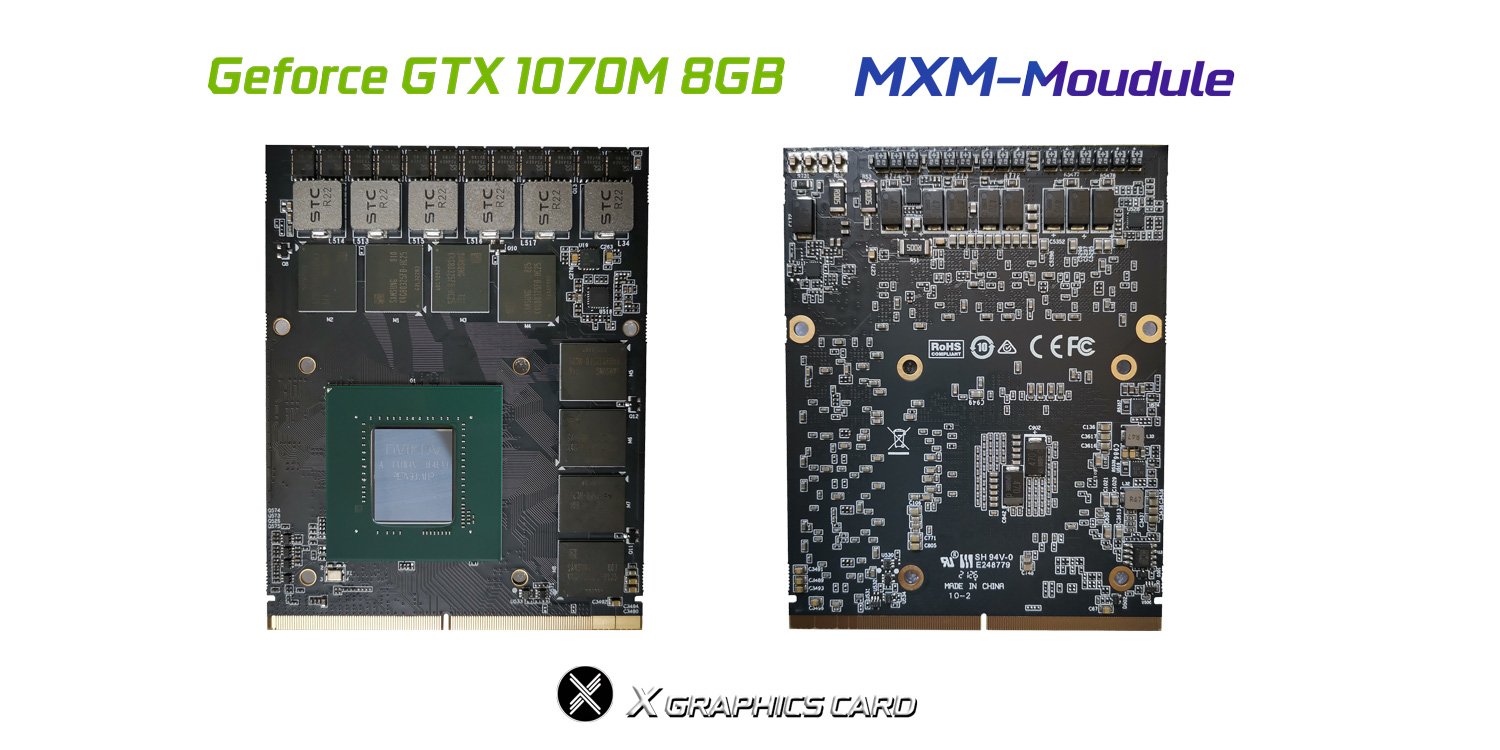

X-VSION MXM Module GTX 1070M 8GB MXM Type B
| NVIDIA GPU : | GTX 1050 Mobile | GTX 1060 Mobile | GTX 1060 Mobile |
| CUDA Core: | 640 | 1280 | 2048 |
| Core Base Clock : | 1354 Mhz | 1405 Mhz | 1443 Mhz |
| Memory Size/Type: | 4GB GDDR5,128bit | 6GB GDDR5,192bit | 8GB GDDR5,256bit |
| Memory Clock: | 7.0 Gbps | 8.0 Gbps | 8.0 Gbps |
| MXM Type : | MXM 3.1 Type A | MXM 3.1 Type B | MXM 3.1 Type B |
| Interface : | PCI-E 3.0( x 16 ) | PCI-E 3.0( x 16 ) | PCI-E 3.0(x16) |
| Dimensions : | 82mm x 70mm | 82mm x 105mm | 82mm x 105mm |
| TDP: | 75w | 80w | 120w |
| Working Temperaturet : | 0℃ ~ 55℃ | ||
| API Support | |||
| DirectX : | 12.1 | 12.1 | 12.1 |
| Vulkan : | 1.3 | 1.3 | 1.3 |
| OpenGL : | 4.6 | 4.6 | 4.6 |
| OpenCL : | 3 | 3 | 3 |
| CUDA : | 6.1 | 6.1 | 6.1 |
| Performance | |||
| Pixel Fillrate: | 21.7 GPixels/s | 80.2 GPixels/s | 105.3 GPixels/s |
| Texture Fillrate: | 54.2 GTexel/s | 133.7 GTexel/s | 210.6 GTexel/s |
| FP32(float): | 1.811 TFLOPS | 4.275 TFLOPS | 6.738 TFLOPS |
| FP64 (double): | 58.72 GFLOPS | 133.6 GFLOPS | 210.6 GFLOPS |
| Support Display out | |||
| A TYPE A/B/C/D : | DP/DP/DP/DP | DP/DP/HDMI | DP/DP/HDMI |
| B TYPE A/B/C/D : | HDMI/HDMI/HDMI | x | x |
| C TYPE A/B/C/D : | x | x | X |
