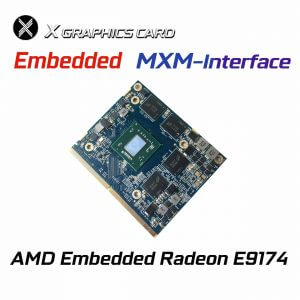

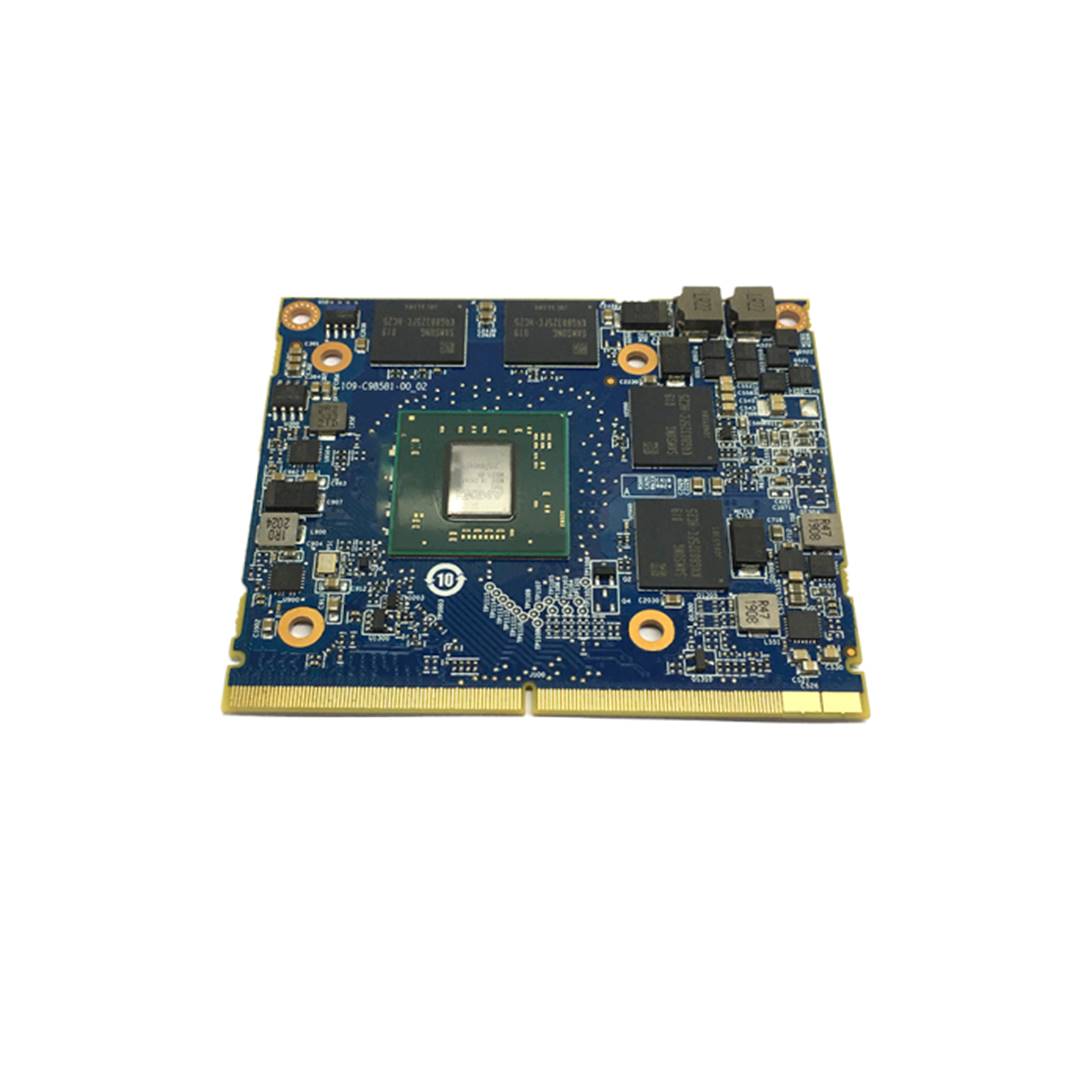

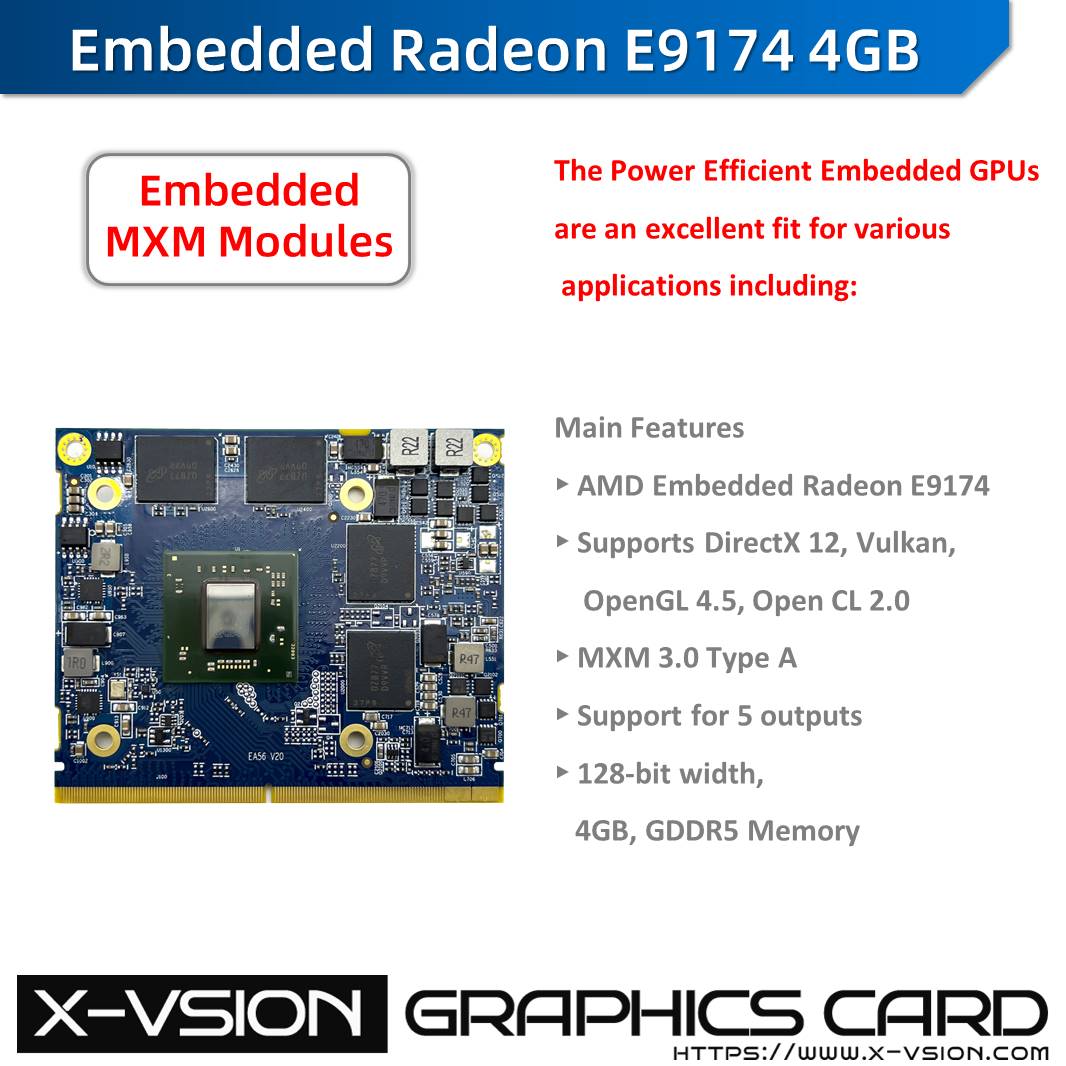

AMD Embedded Radeon E9174
Power Efficient Embedded GPUs :
These GPUs provide excellent processing performance at reduced levels of power consumption, making them well-suited for mobile signage, retail and kiosks, factory human-machine interface systems, heads-up aerospace displays, and thin client computers.
AMD Radeon™ power-efficient embedded discrete GPUs provide an optimal performance-per-watt balance for embedded systems with strict thermal constraints, enabling passive cooling for many designs. Targeted for use in low-power, small form factor, and ruggedized systems.
Low Power Consumption
Boost energy efficiency for power-sensitive systems by leveraging low-power processors with thermal design power (TDP) profiles as low as 20W. Reduce thermal dissipation, improve cooling efficiency, and lower total cost of ownership by using less power.
High-Resolution Graphics in a Small Footprint
Leverage high-quality graphics for small form factor and remotely deployed systems. Maximize space savings with compact systems that fit behind digital signage installations, in airplane cockpit panels, and on mobile hospital workstations.
Fanless Designs and Improved Ruggedization
Employ passive cooling to conserve space and help improve system reliability. Utilize sealed, ventless enclosures that protect against moisture and airborne particulates in harsh operating environments.

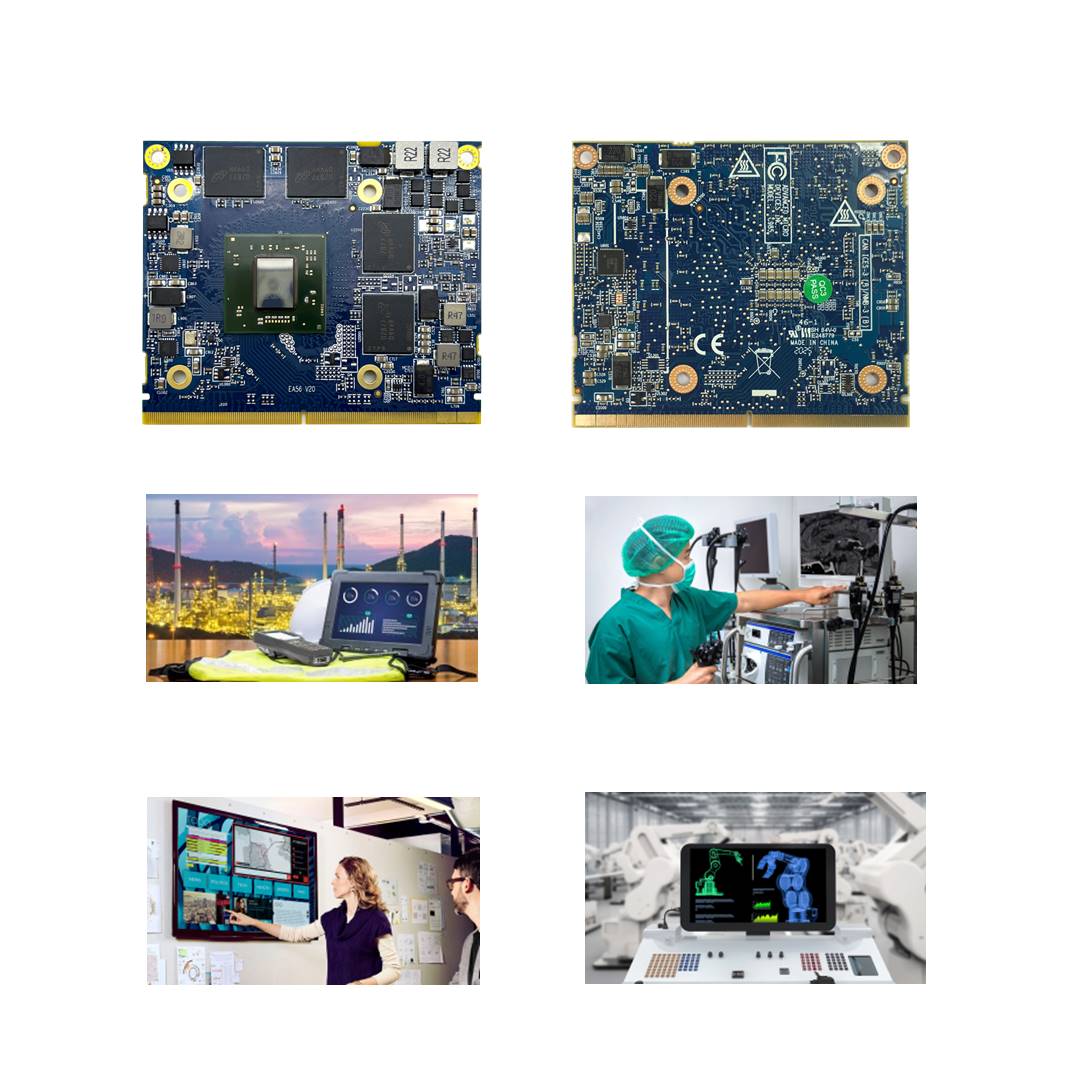

Applications
The Power Efficient Embedded GPUs are an excellent fit for various applications including:
- Mobile and static-screen digital signage
- Retail and Kiosks
- Factory human-machine interfaces
- Thin client computing
- Heads-up aerospace displays

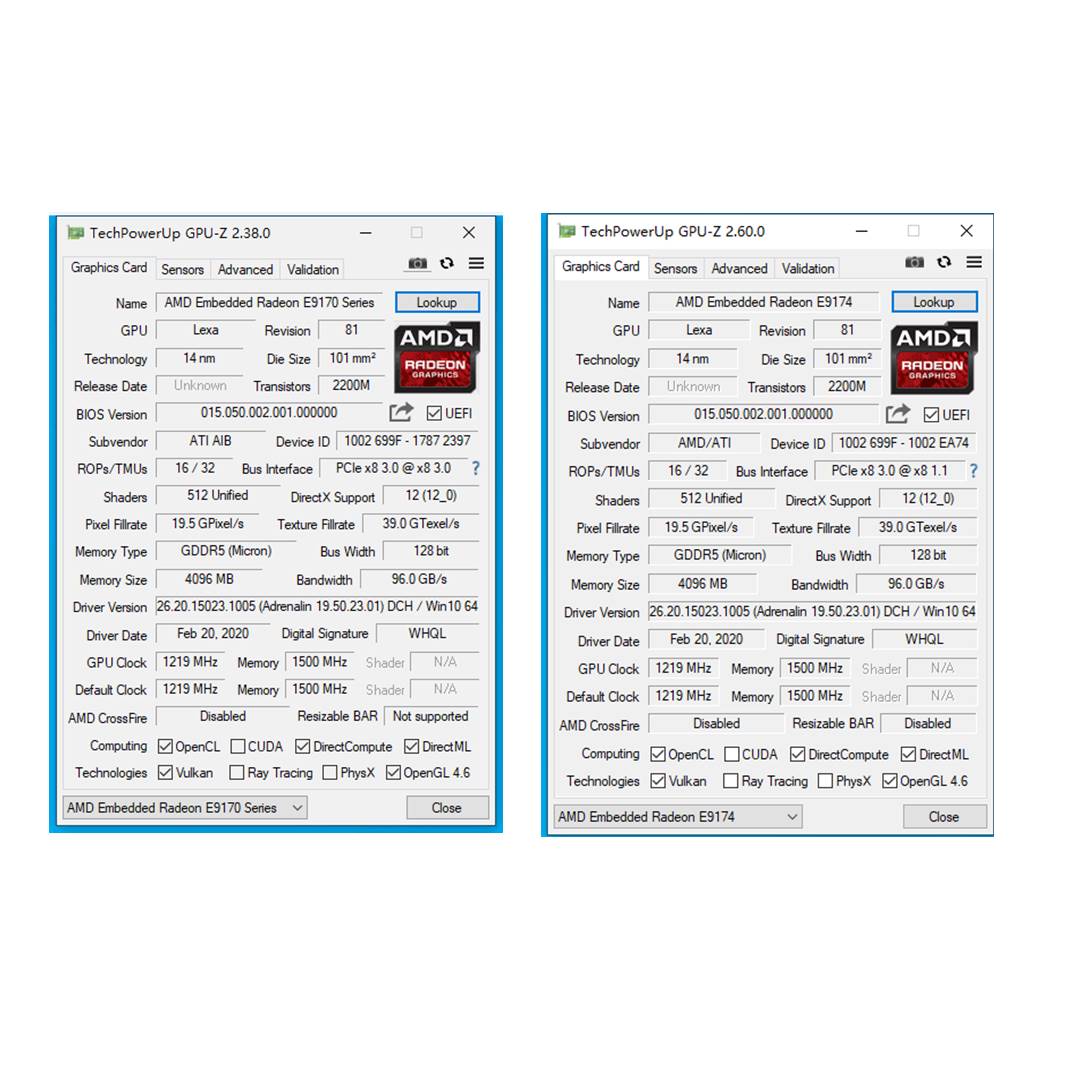

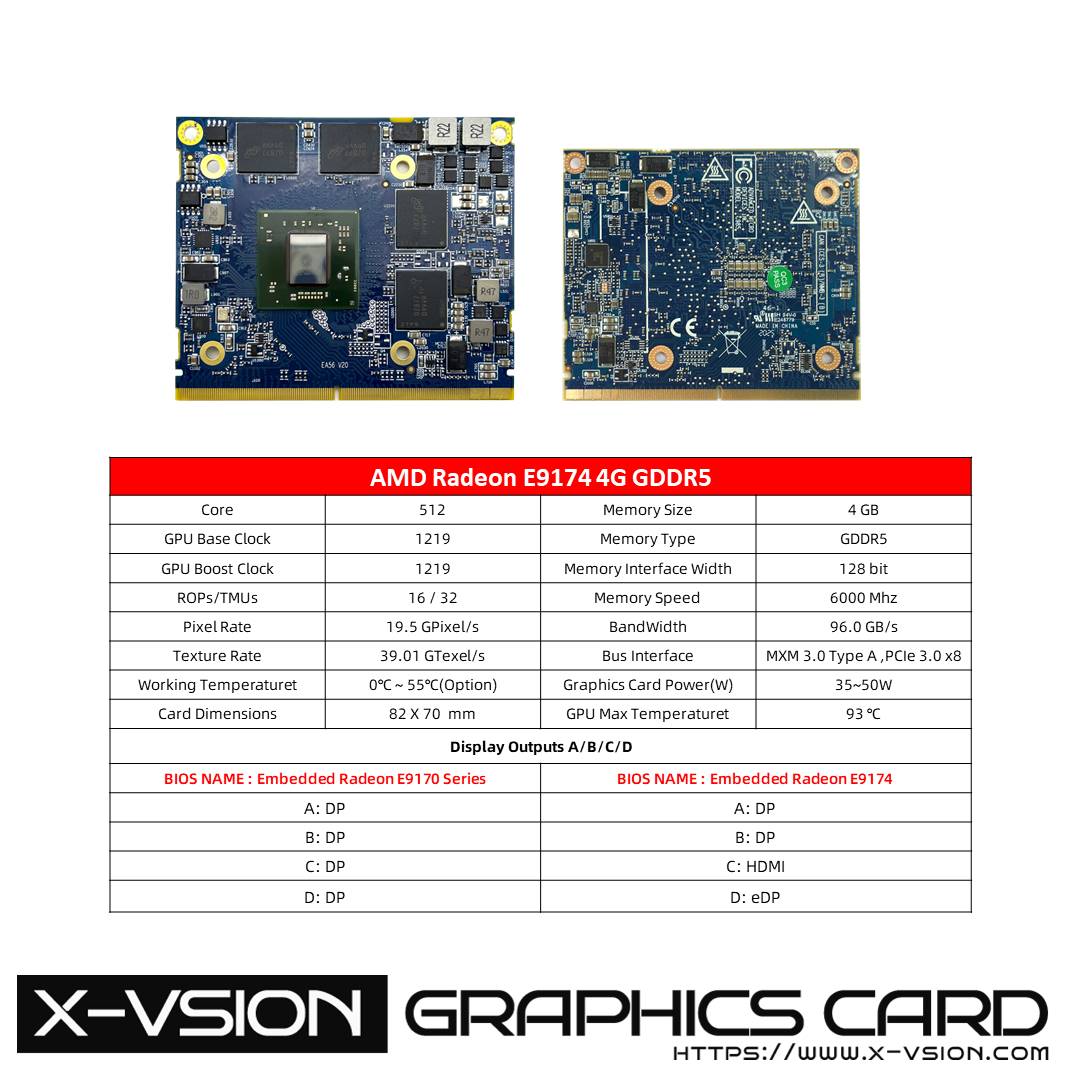

| GPU | AMD Embedded Radeon E9174 | |||
| Stream processors : | 512SP | GPU Frequency | 1124MHz or 1219MHz | |
| Memory Size | 4 GB GDDR5 | Memory bus : | 128 bit | |
| Memory Speed : | 1500MHZ(6.0Gbps | MXM Interface : | MXM 3.0 Type A , PCI-E 3.0(x8) | |
| Dimensions (W) | 35 W | Working Temperaturet : | -20℃ ~ 55℃ | |
| Dimensions | 70 mm x 82mm | |||
| Display output | Type : | A | B | |
| DP A : | Display port | Display port | ||
| DP B : | Display port | Display port | ||
| DP C : | Display port | HDMI | ||
| DP D : | Display port | eDP | ||
| Other : | — | |||
| Floating Point Performance | 1.25 TFLOPs |
| DirectX® capability | DirectX® 12 |
| Shader Model | Shader Model 5.0 |
| OpenGL™ | OpenGL 4.5 |
| OpenCL™ | OpenCL 2.0 |
| VULKAN™ | VULKAN™ Support |
| Unified Video Decoder (UVD) | UVD 6.3 decode |
