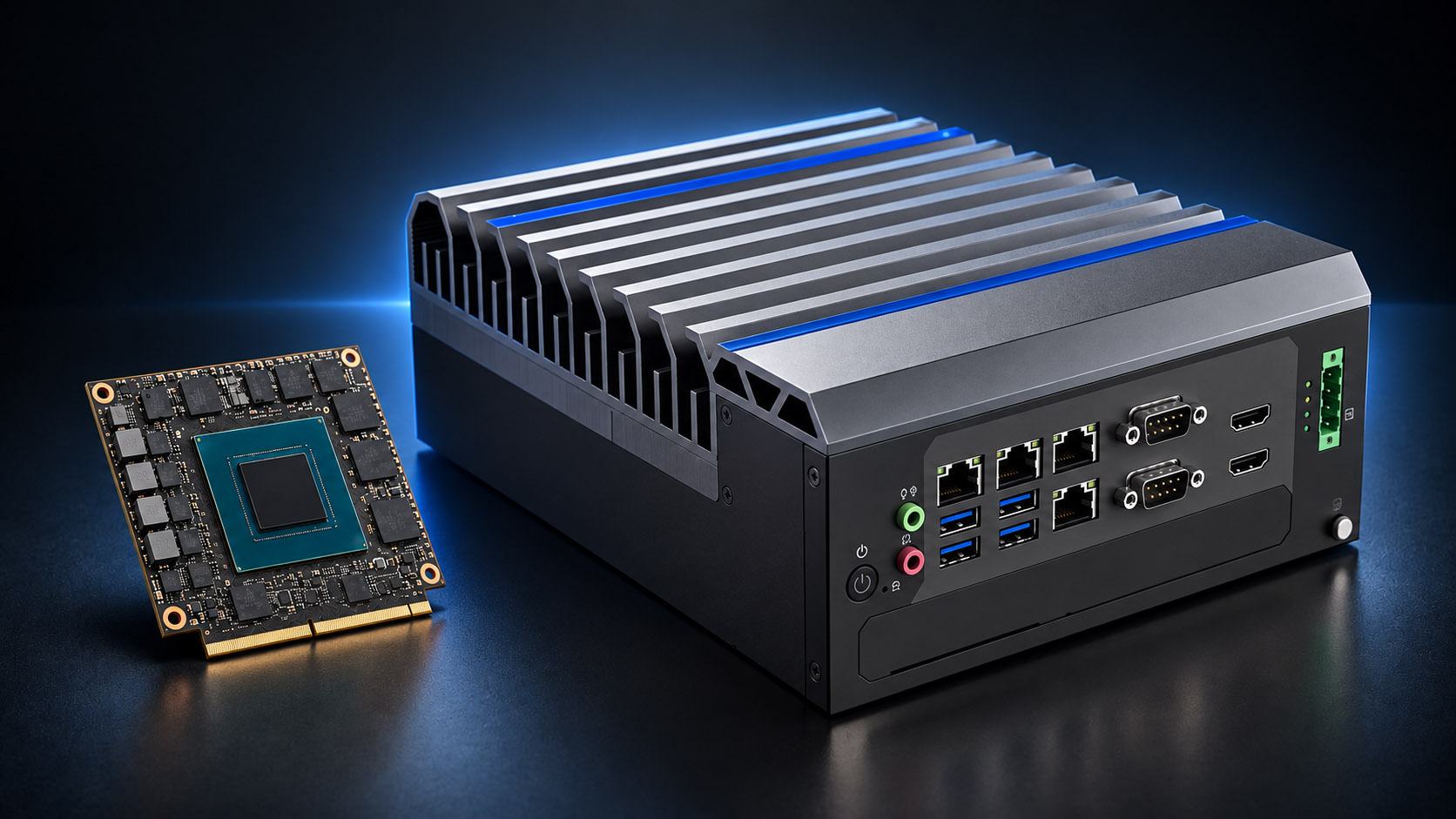

BITECH AE-760EBT: Intel® Core™ i9 + NVIDIA® RTX MXM Industrial Edge AI PC
AE-760EBT: Industrial RTX MXM Edge AI PC | i9-13900 + 242 TOPS INT8 | BITECH
13th Gen Intel® Core™ i9-13900 (24C/32T) + NVIDIA RTX 4060/4070/4090/5080/5090 MXM, actively cooled by dual 80 mm industrial fans — desktop-class AI inference for machine vision, AMR and edge generative AI.
- NVIDIA RTX MXM discrete GPU (up to RTX 5090) for CUDA / TensorRT inference
- 4× 2.5GbE Intel i226-IT, 2× CAN FD, 8 DI / 8 DO isolated for vision & automation
- 9–36V wide voltage + remote power, dual 80 mm PWM fans, -20°C to +60°C 24/7 operation
i9-13900 + RTX MXM, Engineered with Industrial Active Cooling
The AE-760EBT bridges the long-standing gap between consumer-grade GPU workstations and rugged industrial controllers. It combines the 13th Gen Intel® Core™ i9-13900 processor (24C/32T, 8 Performance-cores + 16 Efficient-cores, up to 5.6GHz, 65W base / 219W turbo power) with NVIDIA RTX MXM 3.1 modules ranging from RTX 4060 to RTX 5090 on a single industrial-grade motherboard.
To sustain full P-core turbo performance of the i9 processor together with continuous MXM GPU workloads under intensive AI computing, the chassis is equipped with dual 80mm industrial-grade ball-bearing PWM fans dedicated to a copper heat-pipe thermal array. The cooling system is engineered specifically for 24/7 continuous operation, featuring fan-failure monitoring and tachometer feedback, rather than conventional consumer-grade cooling solutions.
For machine vision builders, the four 2.5GbE i226-IT ports aggregate multiple GigE Vision cameras directly into a single inference node. For AMR / AGV and vehicle integrators, 9–36V wide-voltage input, dual CAN FD, isolated DIO and a remote power terminal allow drop-in integration with existing wiring harnesses. For outdoor and roadside edge deployments, the -20°C to +60°C operating range, IEC 61000-4 immunity and replaceable industrial fans enable serviceable, high- throughput deployment in ventilated enclosures.
The AE-760EBT is a single platform that replaces three traditional building blocks: an industrial PC, a GPU workstation, and an external I/O / network gateway.
AE-760EBT Technical Specifications (Key Components & Interfaces)
| Processor | Intel® Core™ i9-13900 (24C/32T: 8 P-cores + 16 E-cores, up to 5.6 GHz, 36MB L3, 65W base / 219W turbo) |
| Integrated GPU | Intel® Iris® Xe / UHD Graphics |
| Discrete GPU (MXM) | NVIDIA RTX 4060 / 4070 / 4090 / 5080 / 5090 MXM (optional) |
| Cooling | Active cooling – 2× 80 mm (8 cm) industrial ball-bearing PWM fans, >70,000 hrs MTBF, fan-fault & tachometer monitoring |
| Memory | 2× DDR4 SO-DIMM, up to 64 GB |
| Storage | 1× 2.5″ SATA SSD/HDD + 1× mSATA + 1 x PCIe |
| Display | 2× HDMI 2.0 Type-A, up to 4096 × 2160 @ 30 Hz |
| Ethernet | 4× Intel i226-IT 2.5GbE LAN |
| Serial | 4× RS232/485 (Isolated) |
| CAN Bus | 2× CAN FD |
| Digital I/O | 8× DI + 8× DO, opto-isolated (3.3V / 5V / 12V) |
| USB | 4× USB 3.2 Gen1 Type-A (5 Gbps) |
| Wireless / WWAN | 1× M.2 B-Key (4G/5G + SIM), 1× M.2 E-Key (Wi-Fi/BT) |
| Security | TPM 2.0 |
| Power Input | DC 9–36V (jack 5.5×2.5 mm + 3-pin Phoenix), Remote Power On/Off |
| Operating Temp. | -20°C to +60°C (PassMark BurnInTest at full i9 + RTX load, no thermal throttling) |
| Shock / Vibration | 15G @ 11ms / 5–500 Hz, 1 Grms |
| Dimensions / Weight | Compact active-cooled chassis with dual 80 mm fan exhaust / approx. 6.0 kg |
| Mounting | Wall / Side / DIN-rail / VESA |
| OS Support | Windows 11 Pro, Ubuntu, Linux |
This overview supports early-stage system verification. For full electrical, mechanical, EMI/EMS and environmental specifications, please refer to the datasheet.
