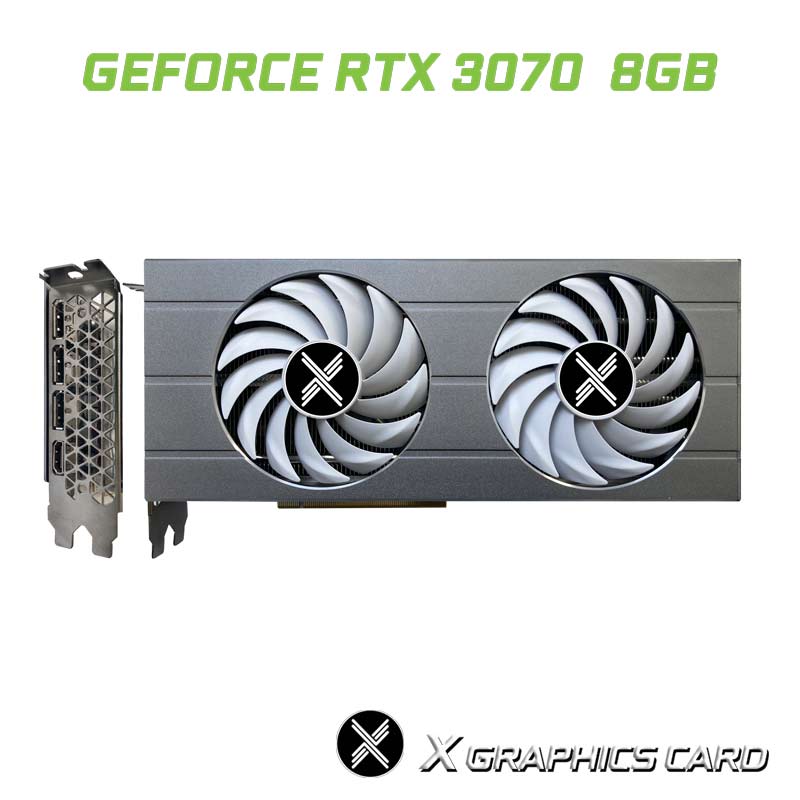

GEFORCE RTX 3070 8GB GDDR6 GRAPHICS CARD
X-VSION The GeForce RTX 3070 graphics cards are powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with dedicated 2nd gen RT Cores and 3rd gen Tensor Cores, streaming multiprocessors, and high-speed memory, they give you the power you need to rip through the most demanding games.
| GPU : | GEFORCE RTX 3070 |
| CUDA® Cores : | 5888 CUDA |
| GPU Clock : | Base : 1500Mhz |
| Boost : 1725 MHz | |
| Memory Size and Type : | 8 GB GDDR6 |
| Memory Interface Width : | 256 bit |
| Memory Clock : | 14 Gbps |
| ROPs / TMUs : | 96 / 184 |
| Pixel Rate : | 165.6 GPixel/s |
| Texture Rate : | 317.4 GTexel/s |
| Interface : | PCI Express x 16 4.0 |
| Output ports : | DisplayPort 1.4a + HDMI 2.0b + DVI-D |
| Card Dimensions : | 230 X 100 x 45 (mm) |
| Maximum GPU Temperature (in C) : | 93 |
| Graphics Card Power (W): | 220 W |
| Required System Power (W): | 550 W |
| Supplementary Power Connectors: | 12pin x 1 |
Ray Tracing Cores 2nd Generation NVIDIA Ansel
Tensor Cores 3rd Generation NVIDIA FreeStyle
NVIDIA Architecture Ampere NVIDIA ShadowPlay
Microsoft DirectX® 12 Ultimate NVIDIA Highlights
NVIDIA DLSS NVIDIA G-SYNC®
NVIDIA Reflex Game Ready Drivers
NVIDIA Broadcast NVIDIA Studio Drivers
PCI Express Gen 4 NVIDIA Omniverse
Resizable BAR NVIDIA GPU Boost™
NVIDIA® GeForce Experience™ Vulkan RT API, OpenGL 4.6
NVIDIA Ansel NVIDIA Encoder 7th Generation
NVIDIA FreeStyle NVIDIA Decoder 5th Generation
NVIDIA ShadowPlay CUDA Capability 8.6
NVIDIA Highlights VR Ready
NVIDIA G-SYNC® OpenCL 3.0
Game Ready Drivers Vulkan 1.3
NVIDIA Studio Drivers CUDA 8.6
NVIDIA Broadcast Shader Model 6.7
PCI Express Gen 4 Shader Model 6.7
Resizable BAR HDCP
NVIDIA® GeForce Experience™
